Common Mistakes When Using DC Power Supply (And How to Avoid Them)

A DC power supply is an incredibly useful tool for electronics work, but it can also become a source of frustration — or expensive damage — if used incorrectly. Many beginners and even experienced makers repeatedly make the same costly mistakes.

This guide covers the most common DC power supply mistakes and, more importantly, how to avoid them.

Top Mistakes When Using DC Power Supplies

Here are the errors that cause the majority of problems:

1. Wrong Voltage Setting Setting the voltage too high is one of the fastest ways to destroy components. Applying 12V to a 5V microcontroller or sensor can cause immediate failure.
2. No Current Limit (or Too High) Many users turn on the supply in Constant Voltage (CV) mode without setting a proper current limit. If the circuit has a short, the supply can dump maximum current, burning traces, chips, or the device under test.
3. Overloading the Circuit or the Supply Drawing more power than the supply is rated for, or more current than the circuit can handle, leads to overheating, voltage drops, or tripped protection.
4. Incorrect Polarity Reversing positive and negative connections is surprisingly common and often destructive.
5. Ignoring Real-Time Monitoring Walking away while testing or not watching the display can allow small problems to become major failures.

How to Avoid These Mistakes (Best Practices)

Follow these simple habits to use your DC power supply safely and effectively:

• Always Start Low Begin with a low voltage (e.g., 1V or 2V) and gradually increase while monitoring current. This gives you time to catch problems before damage occurs.
• Set Current Limit First Always set a reasonable current limit before connecting your circuit. Start conservatively (500mA–1A for most small projects) and increase as needed. This is your primary safety net.
• Monitor the Display Constantly Keep an eye on voltage and current readings. A sudden current spike usually indicates a problem. Good programmable supplies show clear real-time data and even dynamic curves.
• Double-Check Polarity and Connections Verify positive (+) to positive and negative (-) to negative before enabling output. Many modern supplies have output enable/disable buttons — use them!
• Use Memory Presets Save common safe settings (e.g., “Arduino 5V 1A”) into memory slots for fast, error-free recall.
• Respect Ratings Never exceed the power supply’s maximum voltage/current or your circuit’s limits. Give the supply some headroom (e.g., don’t run a 300W supply constantly at 300W).

Recommended Programmable DC Power Supplies for Safer Testing

Programmable models make it much easier to avoid mistakes thanks to presets, better displays, and advanced protections.

• Kiprim DC310Pro — Best overall choice for most users. 2-in-1 design with multimeter, perfect for safe everyday testing.
• Kiprim DC605Pro / DC605S — Excellent 60V options for more advanced projects.

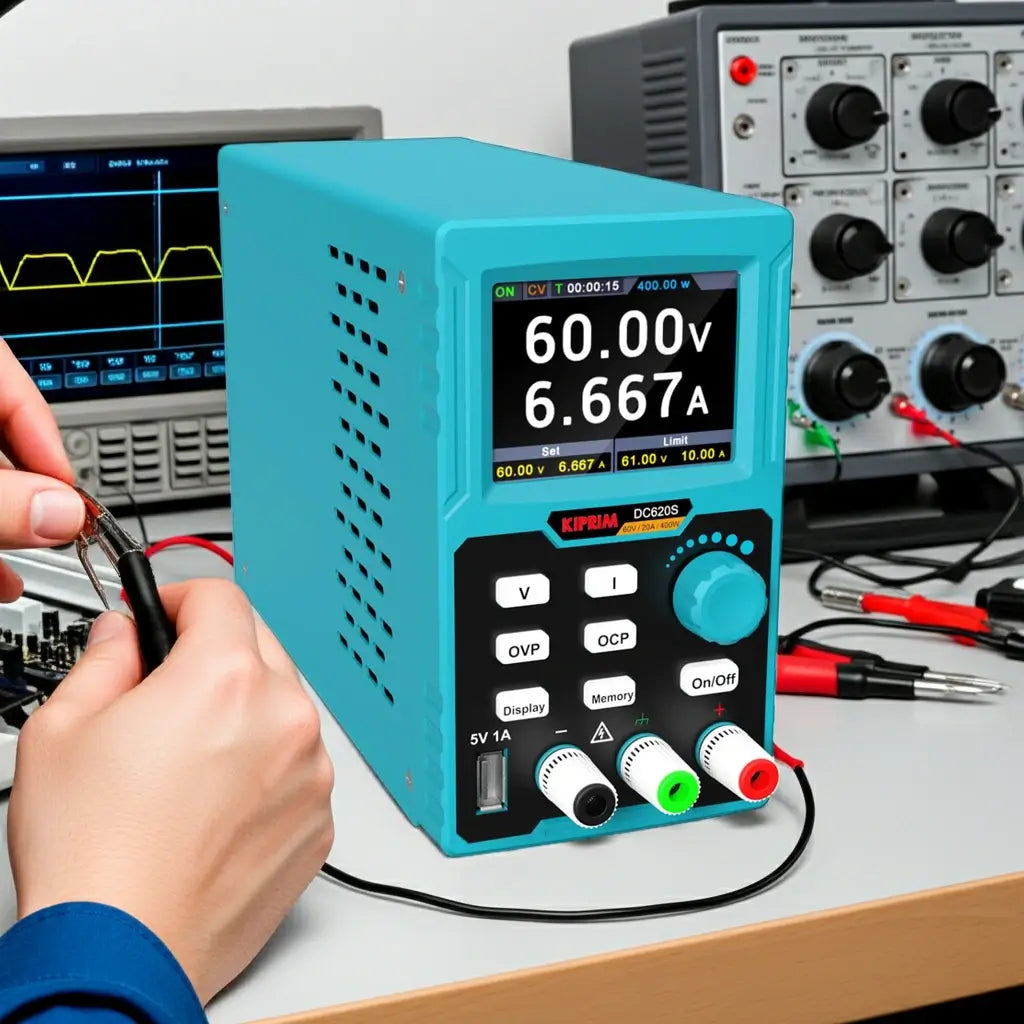

• Kiprim DC620S — High-power 400W model when you need serious current capacity.

These supplies offer clear color displays, memory presets, CC/CV modes, and strong protection systems that help prevent common accidents.

Final Thoughts

Most DC power supply accidents are preventable. By developing good habits — starting low, always setting current limits, and actively monitoring — you’ll protect your components and work with much greater confidence.

👉 Use programmable power supplies for safer testing.

Explore Kiprim’s full range of reliable and precise DC power supplies here: DC Power Supply Collection → https://kiprim.com/collections/dc-power-supply

Adopt these safe practices and your electronics workbench will become far more productive and damage-free.
